Product Introduction

The Sub6G integrated 5G base station is an indoor small base station device that adopts the Qualcomm chip solution and is based on 5G NR technology. It supports the Sub 6G frequency band (2.6G/3.5G), supports Ethernet and SFP optical port backhaul, and is a low-cost solution for solving indoor coverage and increasing network capacity.



13651816436 Manager Sheng
Tel
Product Specifications
  • Interface: 1*10Gbps Ethernet (SFP) interface
  • Frequency band: 2.6/3.5GHz
  • Bandwidth: 100Mhz
  • Multi-antenna: 2T2R
  • Transmit power: Single antenna maximum transmit power of 250mW
  • Operating temperature: -5℃~+55℃

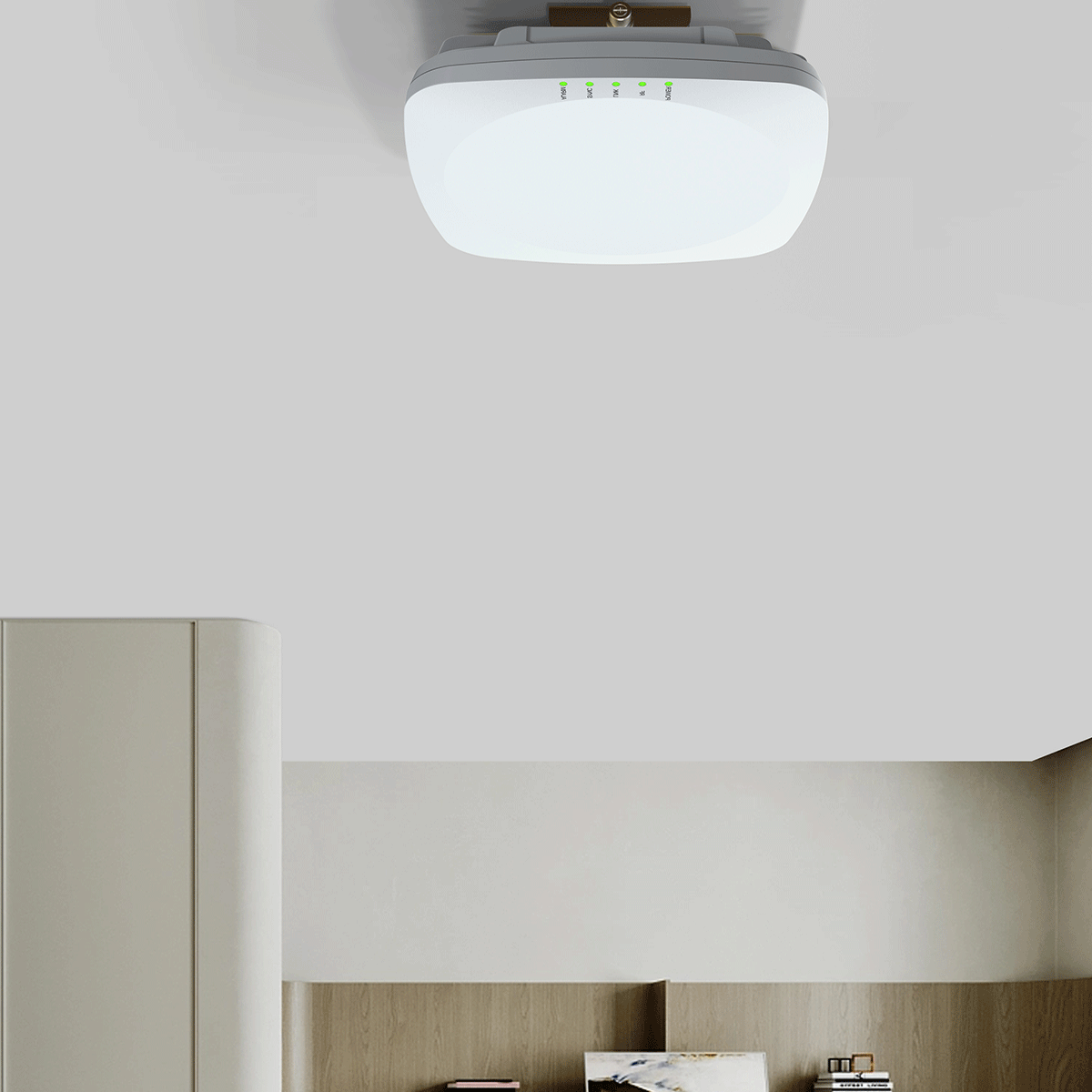

  • Installation method: Wall-mounted, ceiling-mounted
  • Average fault interval: >200,000 hours (25℃ environment)
  • Size: <2.5L
  • Weight: <2Kg
  • Power consumption: <35W
  • Protection grade: IP31
