Product Introduction

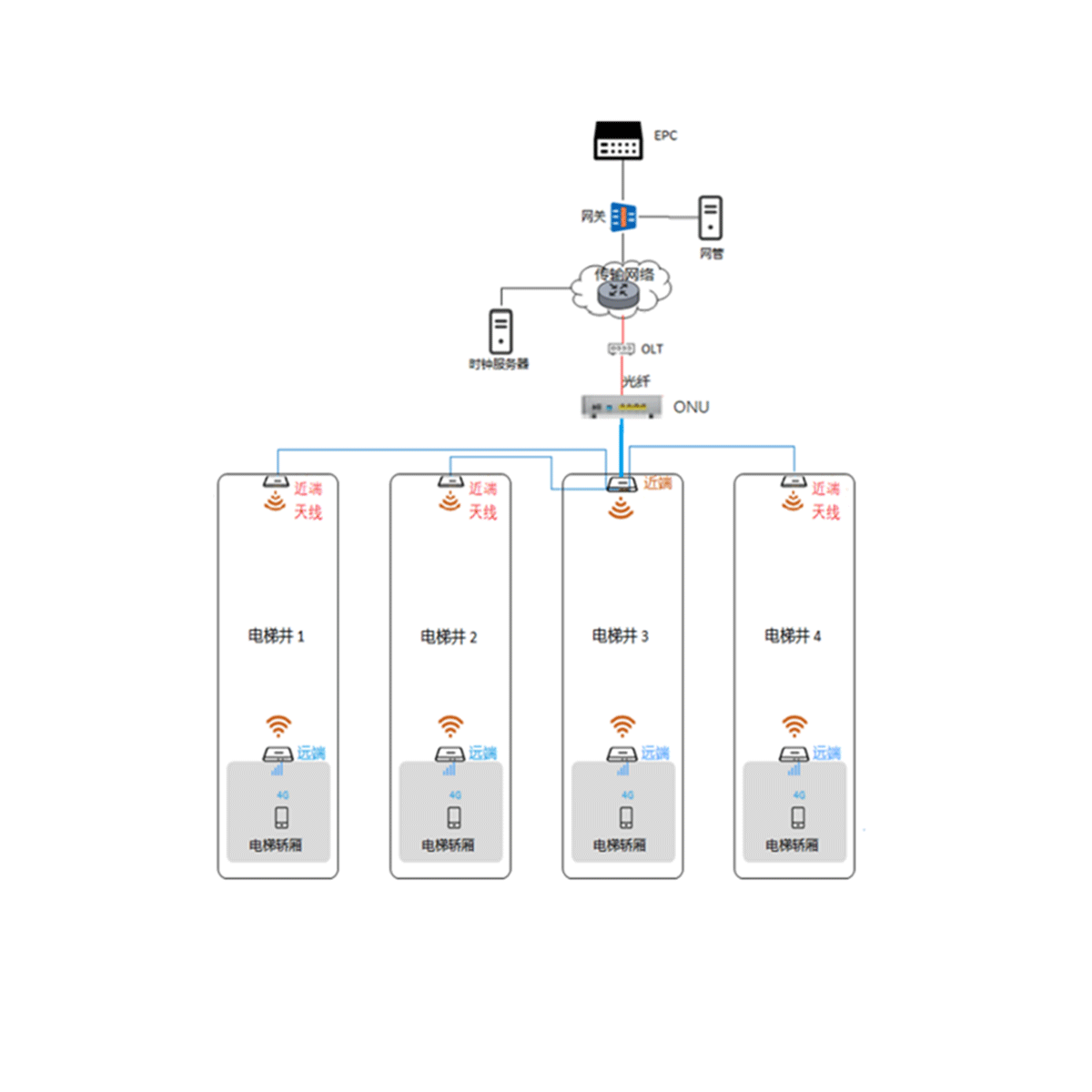

By installing a pair of 5GHz WiFi antennas at the top of the elevator shaft to cover the elevator shaft. It can support Ethernet expansion to achieve a one-to-three networking configuration, covering three elevators. The near end integrates a 5GHz WiFi bridge and router with ONU (optional) function.



13651816436 Manager Sheng
Tel
Product Specifications
  • Near End (including antenna) main specification parameters:

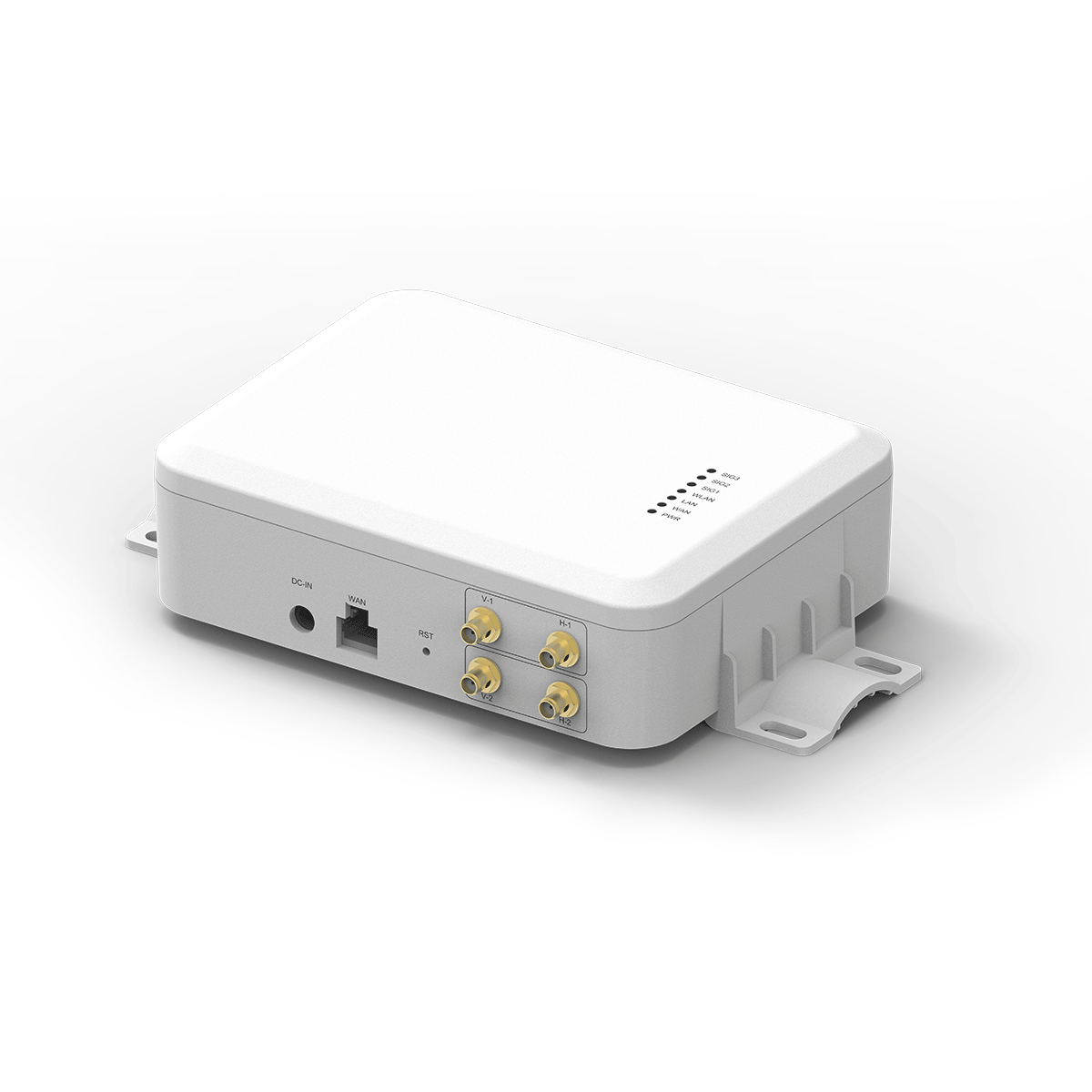

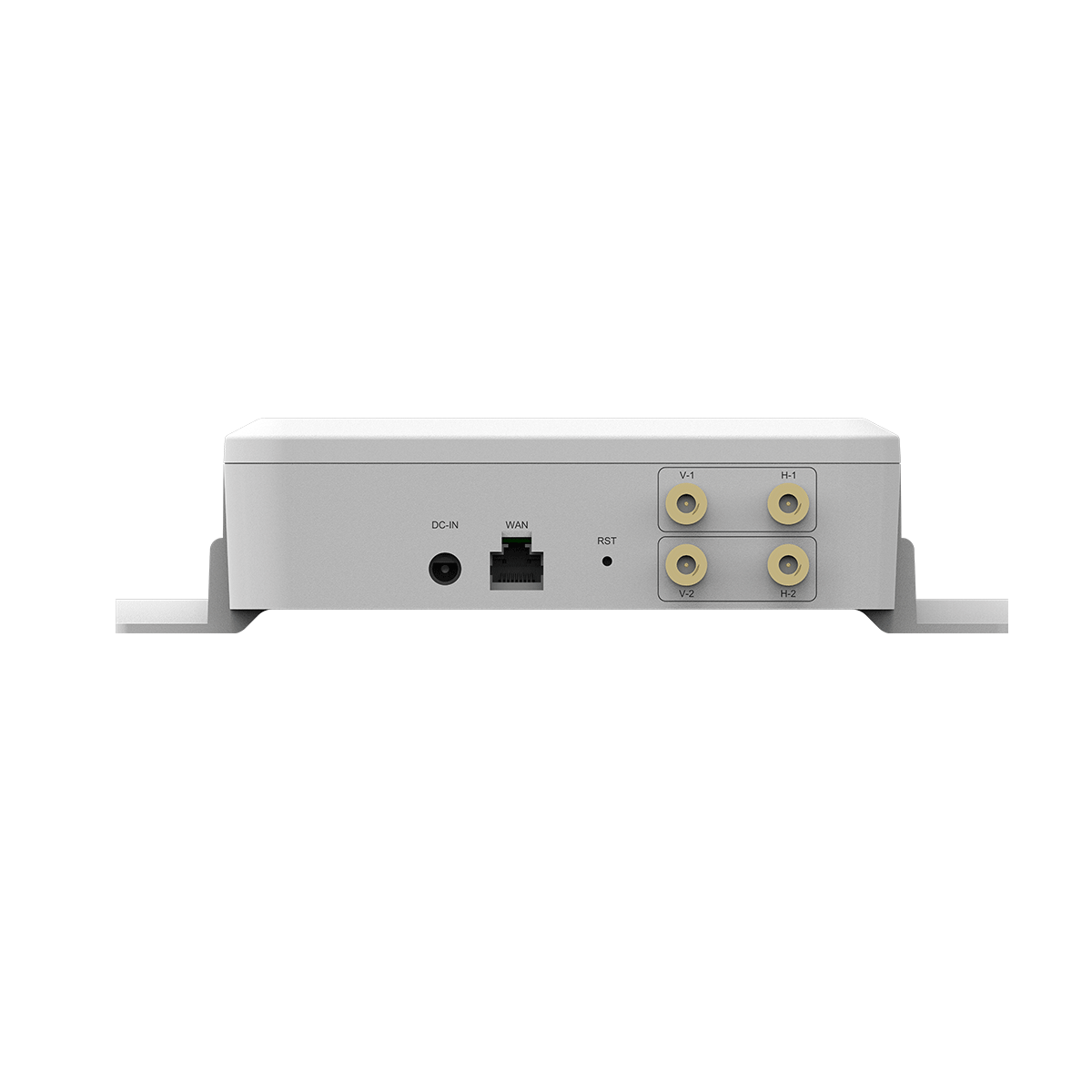

  • Interface: 2100M Ethernet interfaces, 4 SMA interfaces
  • Modulation: BPSK/QPSK/16QAM/64QAM
  • Return path protocol: TDMA
  • Frequency band: 5180~5320MHz, 5745~5825MHz (China)
  • Maximum power: 2125mw
  • Channel bandwidth: 10/20/40MHz
  • Operating mode: Access point, WDS access point
  • Security configuration: WPA2-PSK, hidden SSID, IP/MAC filtering
  • Return path bandwidth: Supports 2m-300m pull-out coverage, system throughput >90Mbps
  • Gain: ≥12dBi
  • Return path antenna: Supports 2*2MIMO built-in antenna
  • Power supply mode: DC12V 2A, Passive POE
  • Installation method: Ceiling mounted, bracket mounted
  • External antenna specification parameters:
  • Frequency band range: 5.1-5.85 GHz
  • Number of ports: 2*2
  • Gain: ≥15dBi
  • Protection grade: IP54
  • Voltage standing wave ratio: <1.5
