Product Introduction

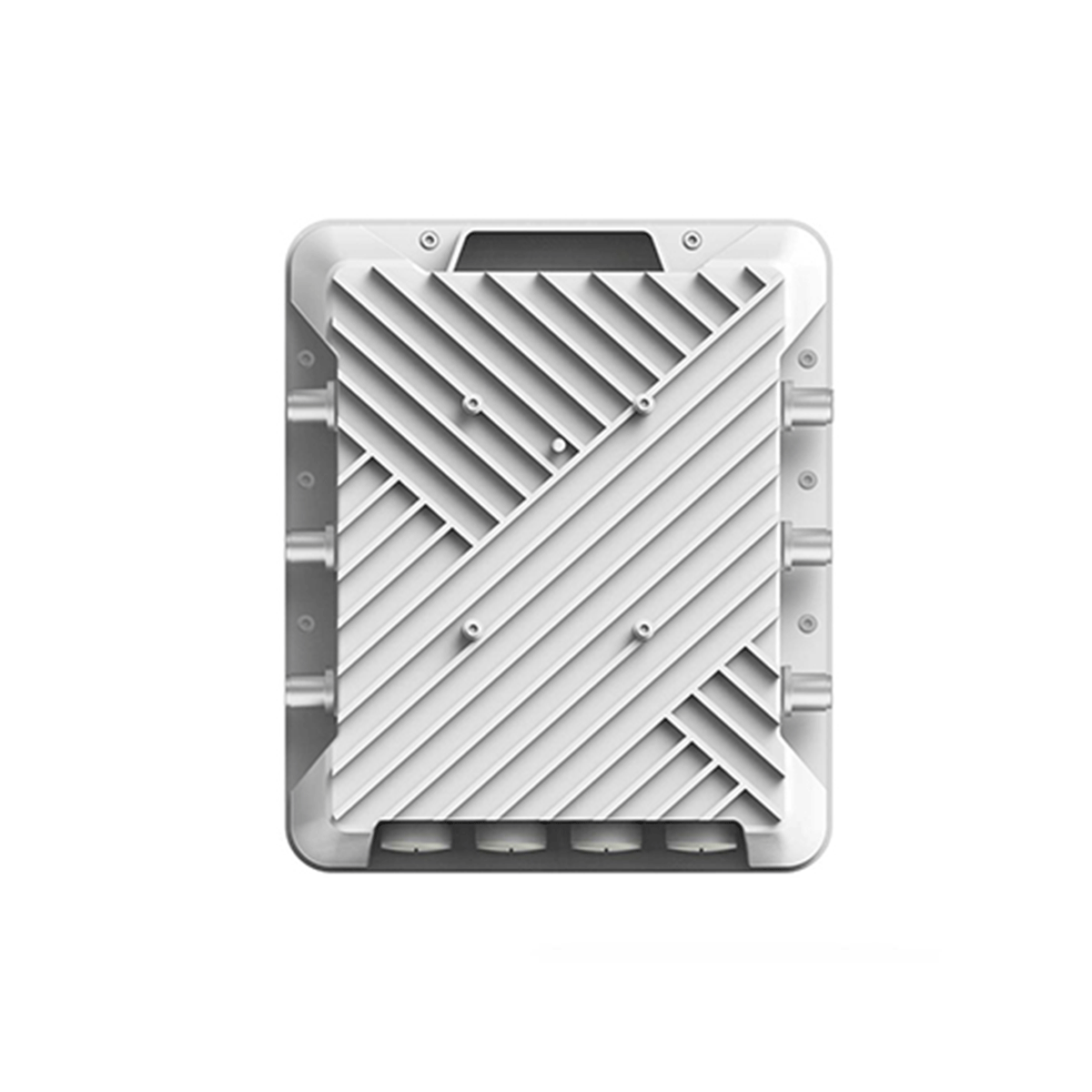

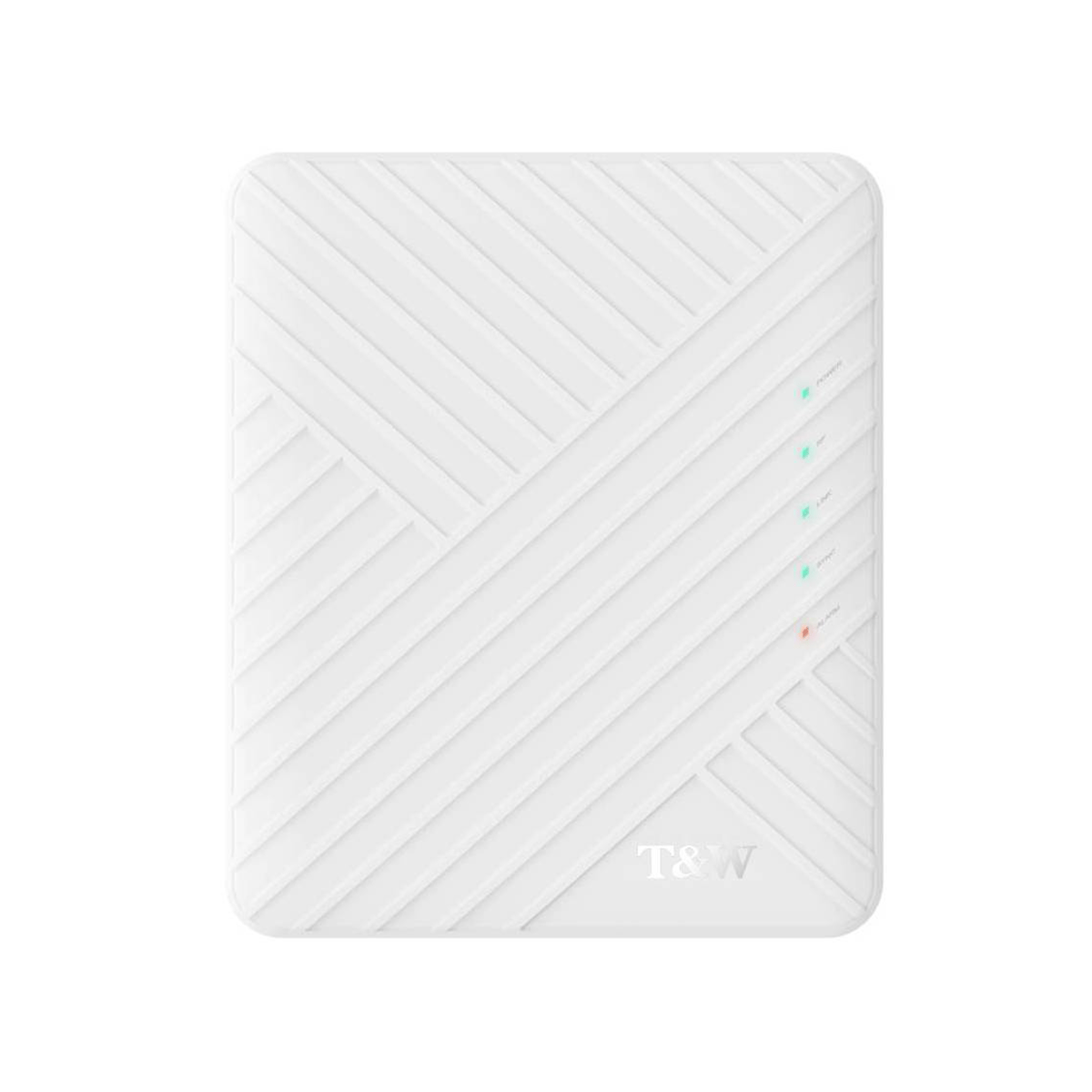

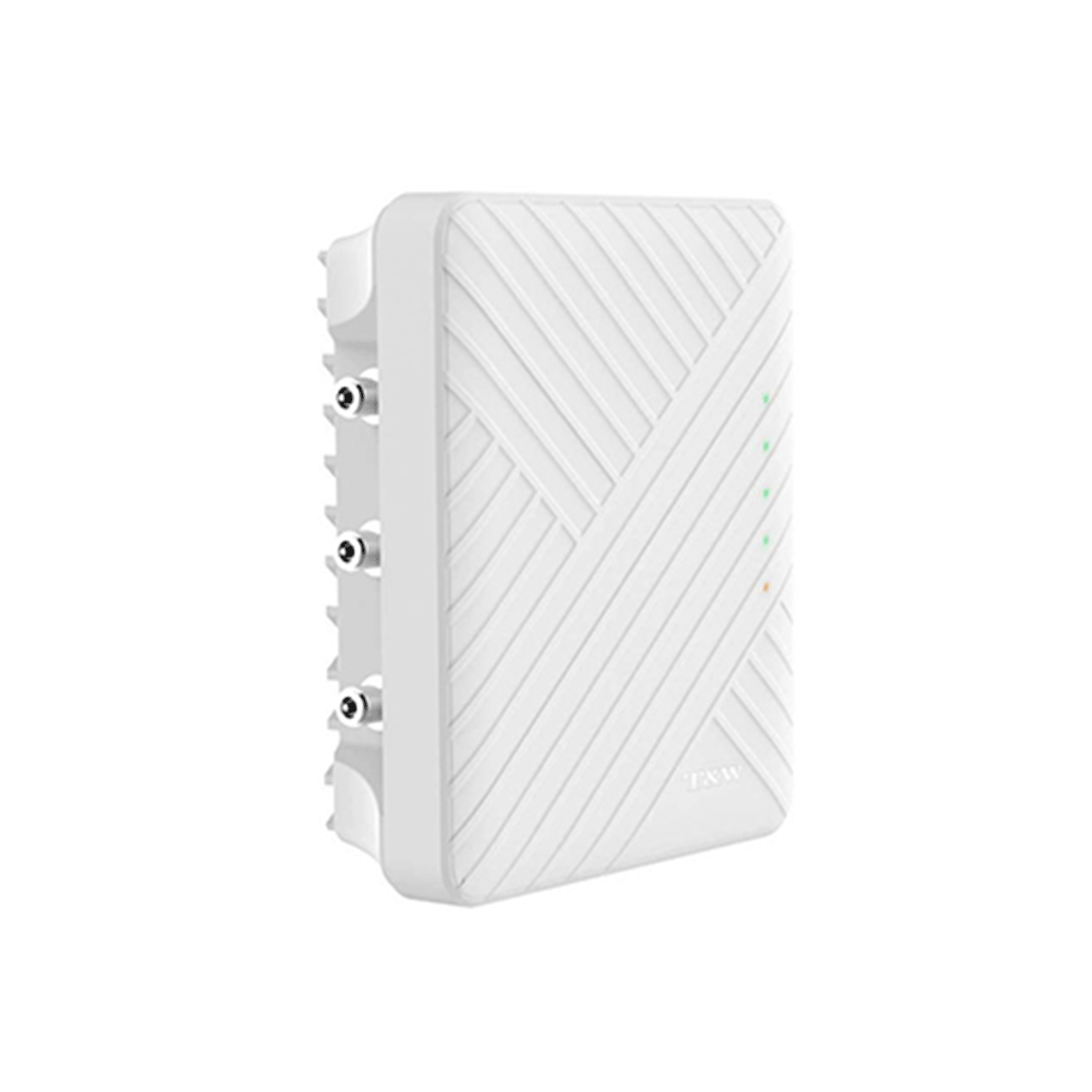

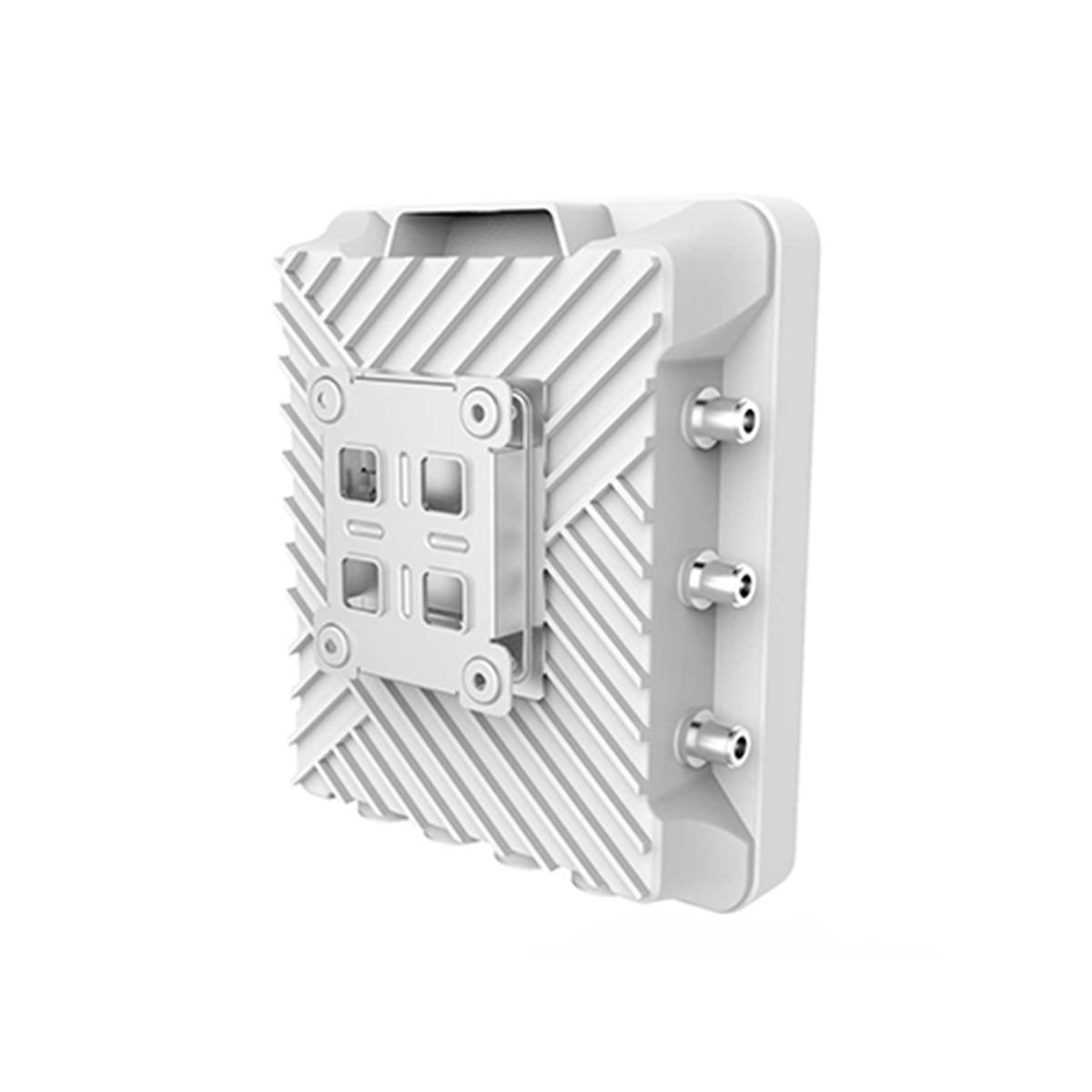

N02501 is an outdoor integrated Pico base station device that adopts the Qualcomm chip solution and is based on TD-LTE technology.

It supports Ethernet and SFP optical port backhaul, and features flexible deployment. With dual-carrier configuration, it is a low-cost solution for solving indoor coverage and increasing network capacity.

13651816436 Manager Sheng

Tel

Product Specifications

● Throughput:
FDD: Downlink 400Mbps (256QAM), Uplink 50Mbps (64QAM)
TDD: Downlink 100Mbps (256QAM), Uplink 10Mbps (64QAM)
● Number of users:
VoLTE users: 64
Active users: 64
Connected users: 192
● Coverage range: 10,000 m2
● Maximum transmit power: 1000mW
+ Self-organization function:
· Self-configuration
Frequency, PCI, transmit power, automatic neighbor relations
· Self-optimization
Mobility robustness optimization, load balancing, inter-cell interference coordination
+ Supports configuration and firmware upgrade based on TR-069, web GUI.
+ Backhaul mode: GE port / SFP
+ Power supply: 12V / POE 48V
+ Rated power: <25W
+ Size: 270 x 230 x 82mm
● Operating environment:
+ Temperature: -40~65℃
+ Humidity: <95%
+ Protection grade: IP67
