Product Introduction

The millimeter-wave integrated 5G base station is an indoor small base station device that adopts the Qualcomm chip solution and is based on 5G NR technology. It supports millimeter wave frequency bands, Ethernet and SFP optical port backhaul, and is a low-cost solution for solving indoor coverage and increasing network capacity.



13651816436 Manager Sheng
Tel
Product Specifications
  • Interface: 110Gbps Ethernet (SFP) interface
  • Frequency band: 28G: 26.5 – 29.5 GHz
  • Bandwidth: 800Mhz (2400Mhz or 8*100Mhz)
  • Multi-antenna: 128T128R
  • Transmit power: EIRP: 50dBm
  • Operating temperature: -5℃~+55℃
  • Installation method: Wall-mounted, ceiling-mounted
  • Average fault interval: >200,000 hours (25℃ environment)

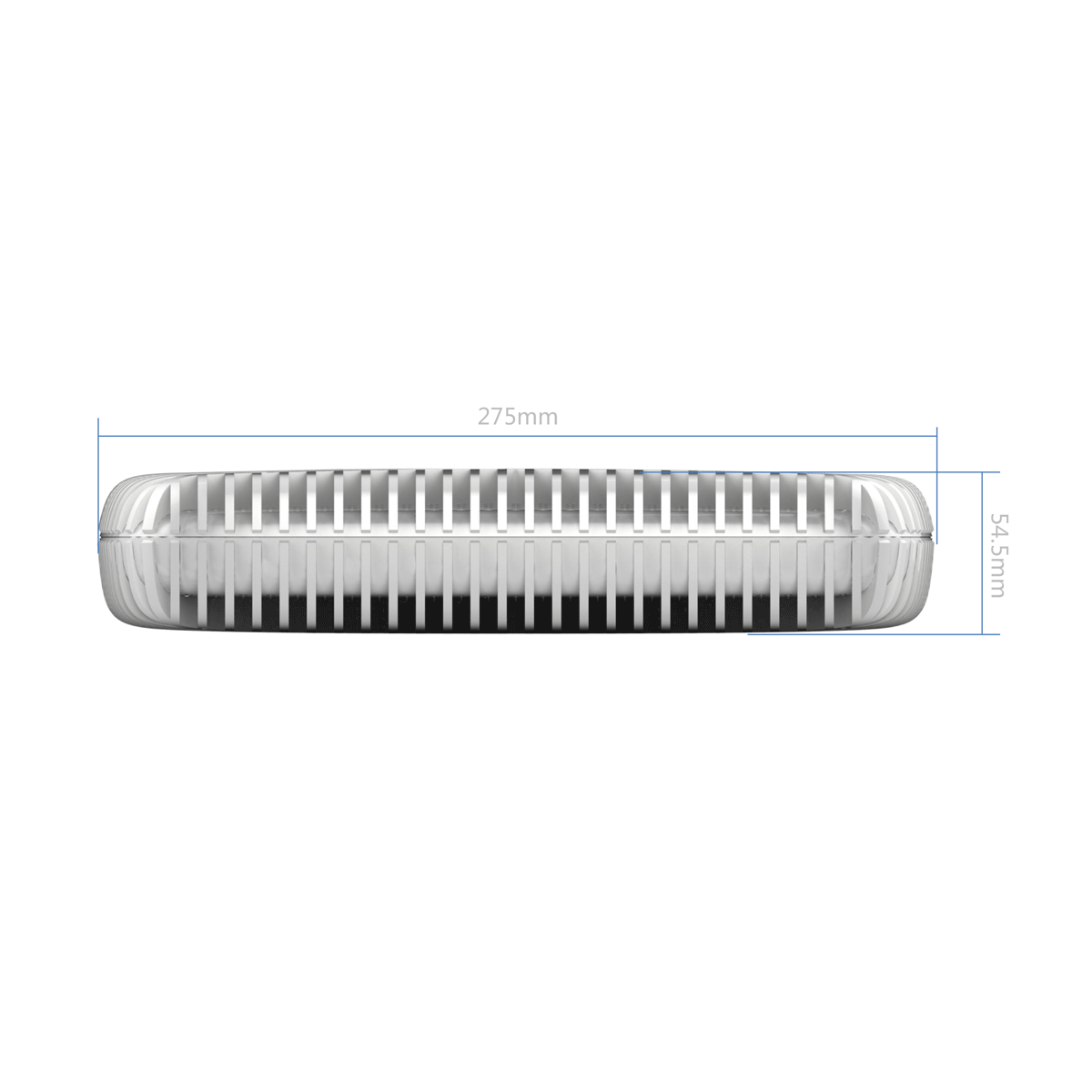

  • Size: <2.5L
  • Weight: <2Kg
  • Power consumption: <75W
  • Protection grade: IP31
