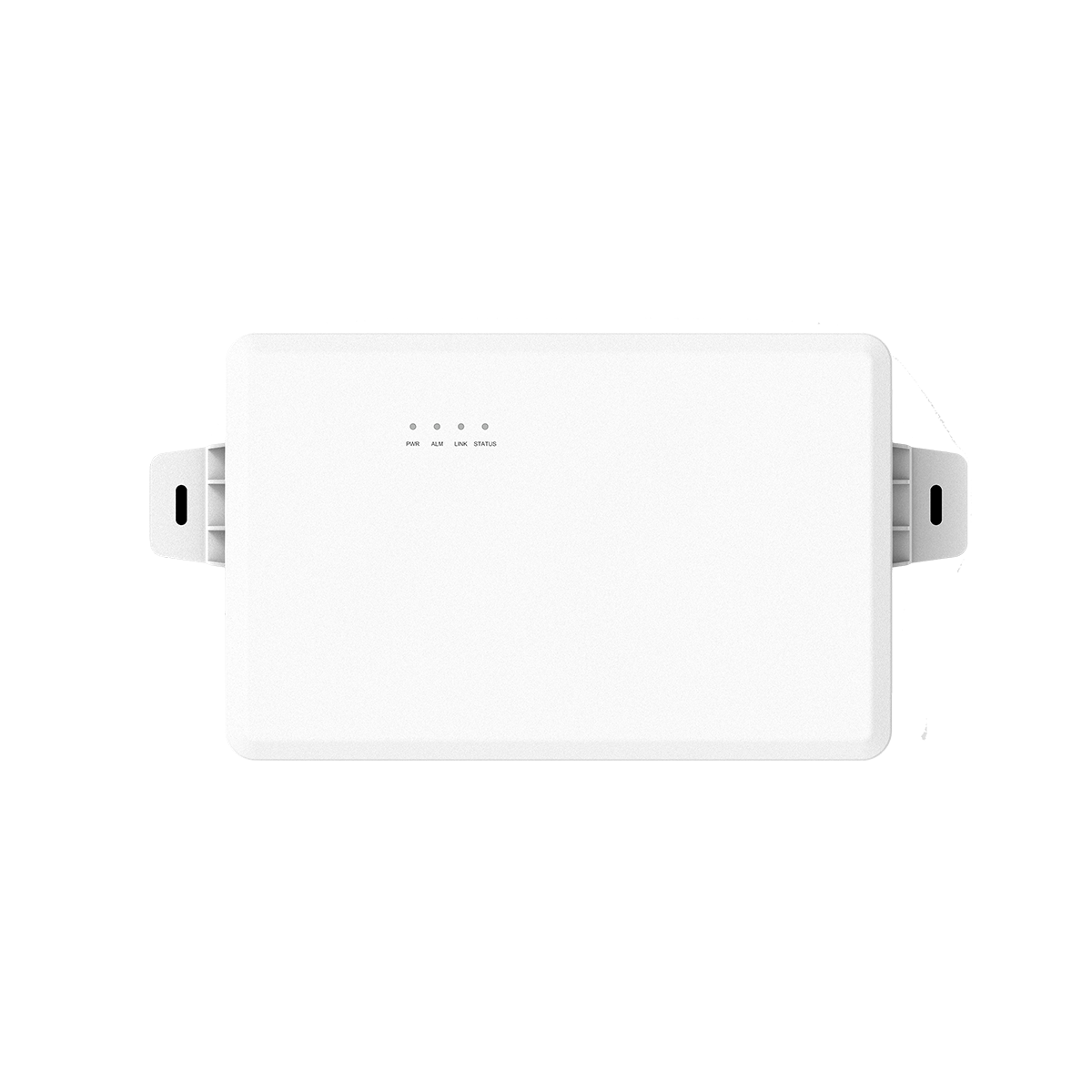

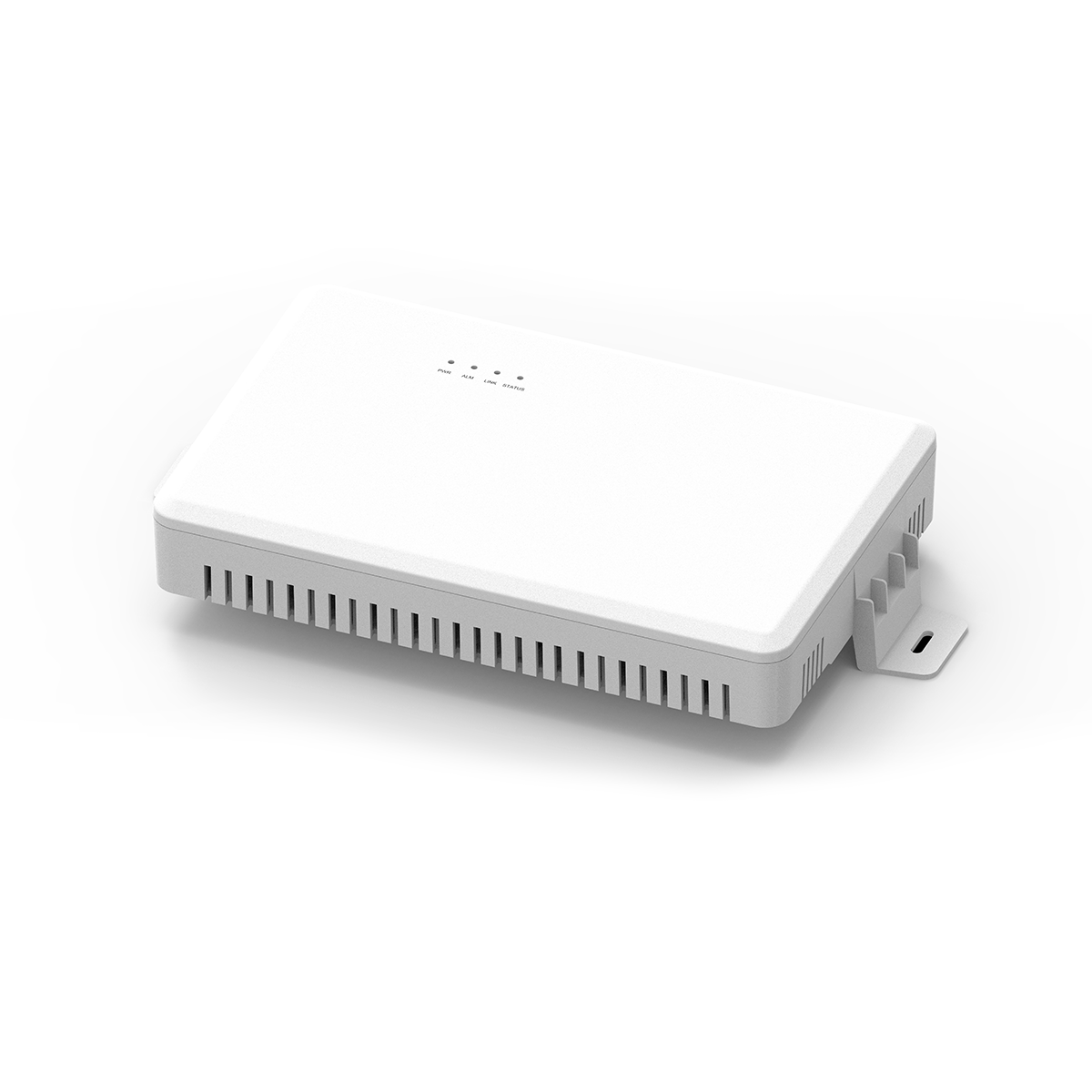

4G Lift Type Pico
4G Lift Type Pico
Base Station Remote
4G Lift Type Pico
4G Lift Type Pico
Base Station Remote
Product Introduction


The remote end integrates 5GHz WiFi bridge and 4G base station functions in an integrated design. It is installed on the top of the elevator car outside the elevator cabin. It mainly has functions such as wireless data return of cellular base station, wireless resource management, mobility management, physical layer processing, transceiver function, and equipment status monitoring. The 4G base station module supports built-in (default built-in antenna) and external antennas. It can use built-in antennas or external antennas to introduce 4G signals into the elevator car to provide users with stable coverage in all directions.






13651816436 Manager Sheng
Tel
Product Specifications
  • 5GHz WiFi Bridge Specification
  • Interface: 2100M Ethernet interfaces
  • Modulation: BPSK/QPSK/16QAM/64QAM
  • Return path protocol: TDMA
  • Frequency band: 5180~5320MHz, 5745~5825MHz (China)
  • Maximum power: 2125mw
  • Channel bandwidth: 10/20/40MHz
  • Operating mode: Access point, WDS access point
  • Security configuration: WPA2-PSK, hidden SSID, IP/MAC filtering
  • Return path bandwidth: Supports 2m-300m pull-out coverage, system throughput >90Mbps
  • Return path antenna: Supports 22MIMO built-in antenna
  • Base Station Module Specification:
  • Frequency band: Band3: 1805-1880MHz / Band40: 2330-2370MHz
  • Channel bandwidth: Supports 5/10/15/20 channel bandwidths
  • Modulation method: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • Capacity: 32 active users, 64 RRC connected users
  • Antenna: Built-in antenna 2T2R
  • Maximum transmit power (mW): 250mw
  • Receiver sensitivity dBm: <-93.5
  • Power supply mode: DC 12V/2A
  • Installation method: Ceiling mounted, bracket mounted, surface mounted
